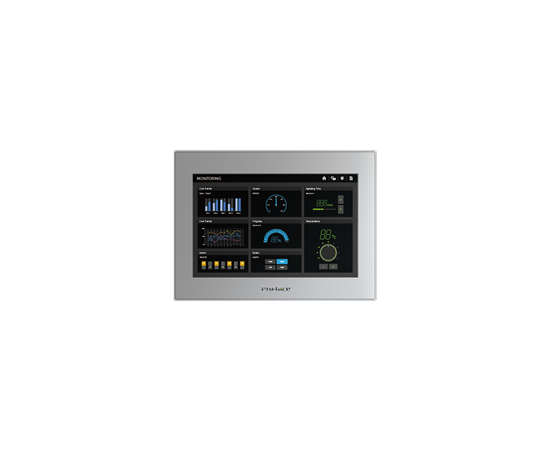

HMI GP-6000 serie - PFXGP6540WCDI
Skjerm:
- 10.1" WXGA- 1280 x 800 pixels
- TFT, Farge LCD
- 16 mill. farger
- PCAP Projected Capacitive Glass surface
- Multi touch
- 24V DC
- Brightness kontroll (101 nivåer)
Utskjæringsmål:
Editor:
- Software: GP-Pro EX
- Flash minne: 4 GB
- Backupminne: NVRAM 512 kb
Porter:
- Serial COM1 RS-232C D-Sub9 (plug)
- Serial COM2 RS-422/485 (MPI) D-Sub9 (plug)
- 2x USB 2.0 (Type A)
- USB 2.0 (micro-B)
- USB 2.0 (Type-C)
- 2x Ethernet RJ45 IEEE802.3/IEEE802.3u, 10 BASE-T/100 BASE-TX
- SD/SDHC/SDXC
Spesifikasjoner:
- Spenningsforsyning 10.8 to 28.8 Vdc
- Max. forbruk 16 W
- Arbeidstemperatur 0 to 55°C
- IP65F
