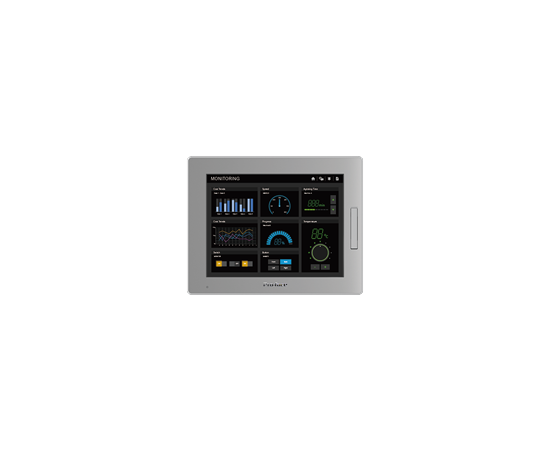

HMI GP-6000 serie - PFXGP6540TMAI
Skjerm:
- 10.4" SVGA- 800 x 600 pixels
- TFT, Farge LCD
- 16 mill. farger
- Plastic Overlay
- Analog multi 2 point-touch
- 230V AC
- Brightness kontroll (101 nivåer)
Utskjæringsmål:
Editor:
- Software: GP-Pro EX
- Flash minne: 4 GB
- Backupminne: NVRAM 512 kb
Porter:
- Serial COM1 RS-232C D-Sub9 (plug)
- Serial COM2 RS-422/485 (MPI) D-Sub9 (plug)
- 2x USB 2.0 (Type A) on the back
- 1x USB 2.0 (micro-B) on the back
- 1x USB 2.0 (Type A) in the front
- 1x USB 2.0 (micro-B) in the front
- 2x Ethernet RJ45 10 BASE-T/100 BASE-TX/1000 BASE-T
- SD/SDHC/SDXC
Spesifikasjoner:
- Spenningsforsyning 100 to 240 Vac
- Max. forbruk @ 240VAC 34 VA
- Arbeidstemperatur 0 to 60°C
- IP65F
