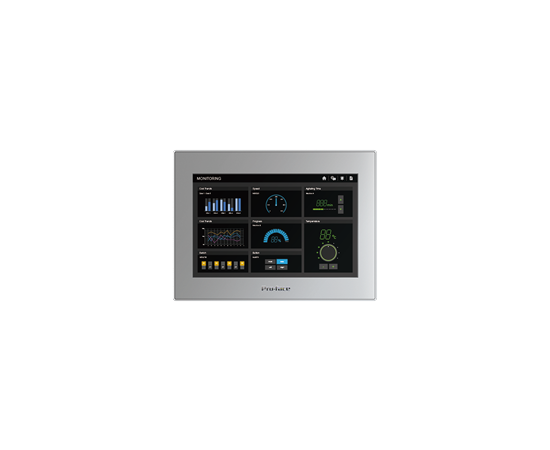

HMI GP-6000 serie - PFXGP6540WCAI

Skjerm:

• 10.1" WXGA- 1280 x 800 pixels
• TFT, Farge LCD
• 16 mill. farger
• PCAP Projected Capacitive Glass surface
• Multi touch
• 230V AC
• Brightness kontroll (101 nivåer)

Utskjæringsmål:

• 255 x 185 mm

Editor:

• Software: GP-Pro EX
• Flash minne: 4 GB
• Backupminne: NVRAM 512 kb

Porter:

• Serial COM1 RS-232C D-Sub9 (plug)
• Serial COM2 RS-422/485 (MPI) D-Sub9 (plug)
• 2x USB 2.0 (Type A)
• USB 2.0 (micro-B)
• USB 2.0 (Type-C)
• 2x Ethernet RJ45 IEEE802.3/IEEE802.3u, 10 BASE-T/100 BASE-TX
• SD/SDHC/SDXC

Spesifikasjoner:

• Spenningsforsyning 100 to 240 Vac
• Max. forbruk @ 240VAC 35 VA
• Arbeidstemperatur 0 to 55°C
• IP65F
