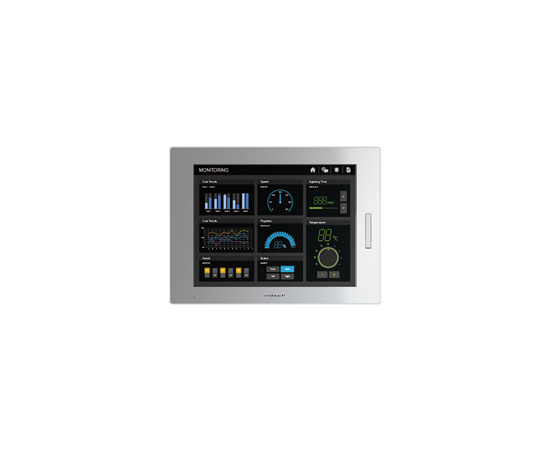

HMI GP-6000 serie - PFXGP6740TMDI

Skjerm:

• 15" XGA- 1024 x 768 pixels
• TFT, Farge LCD
• 16 mill. farger
• Plastic Overlay
• Analog multi 2 point-touch
• 24V DC
• Brightness kontroll (101 nivåer)

Utskjæringsmål:

• 383.5 x 282.5 mm

Editor:

• Software: GP-Pro EX
• Flash minne: 4 GB
• Backupminne: NVRAM 512 kb

Porter:

• Serial COM1 RS-232C D-Sub9 (plug)
• Serial COM2 RS-422/485 (MPI) D-Sub9 (plug)
• 2x USB 2.0 (Type A) on the back
• 1x USB 2.0 (micro-B) on the back
• 1x USB 2.0 (Type A) in the front
• 1x USB 2.0 (micro-B) in the front
• 2x Ethernet RJ45 10 BASE-T/100 BASE-TX/1000 BASE-T
• SD/SDHC/SDXC

Spesifikasjoner:

• Spenningsforsyning 10.8 to 28.8 Vdc
• Max. forbruk 22 W
• Arbeidstemperatur 0 to 60°C
• IP65F
